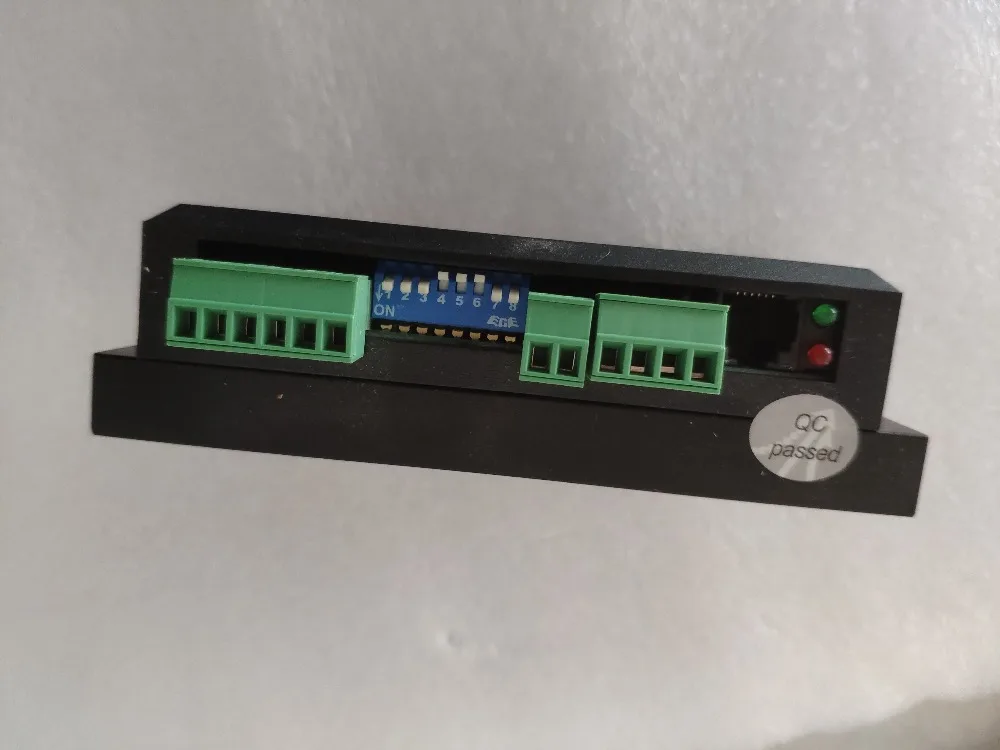

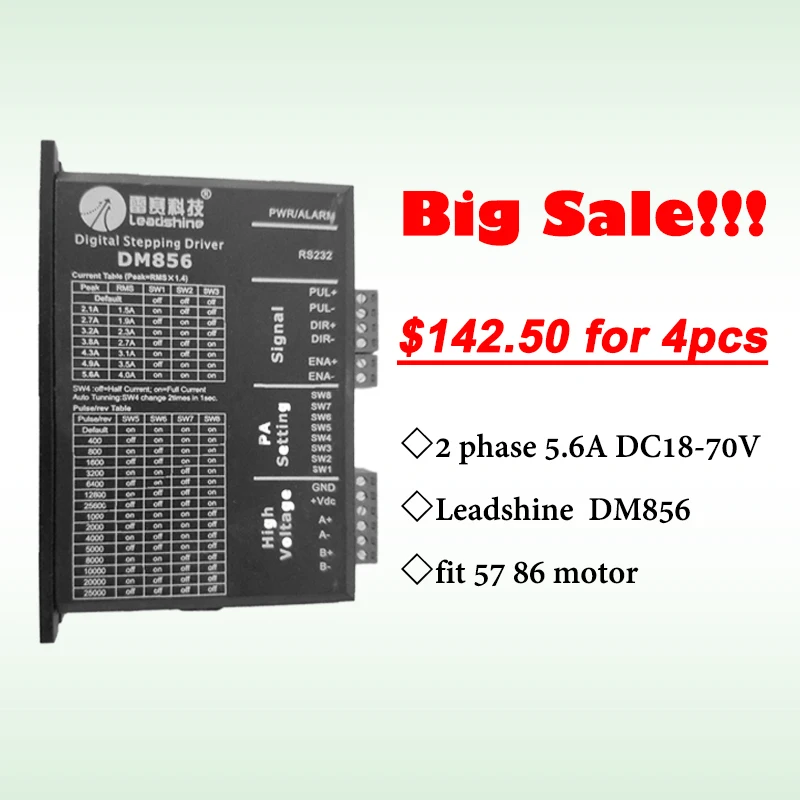

2 phase 5.6A DC18-70V DM856 Leadshine Digital Stepping driver fit 57 86 motor
Features:
1. Anti-Resonance, provides optimum torque and nulls mid-range instability
2. Motor auto-identification and parameter auto-configuration technology, offers optimum responses with different motors
3. Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance
4. Microstep resolutions programmable, from full-step to 102,400 steps/rev
5. Supply voltage up to +80 VDC
6. Output current programmable, from 0.5A to 5.6A
7. Pulse input frequency up to 200 KHz
8. TTL compatible and optically isolated input
9. Automatic idle-current reduction
10. Suitable for 2-phase and 4-phase motors
11. l Support PUL/DIR and CW/CCW modes
12. Over-voltage, over-current, phase-error protections
Description:
The DM856 is a versatility fully digital stepping driver based on a DSP with advanced control algorithm. The DM856 is the next generation of digital stepping motor controls. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. Motor auto-identification and parameter auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drivers in the markets. Its unique features make the DM856 an ideal solution for applications that require low-speed smoothness. Compared to the DM432C, broader input voltage and output current ranges make the DM856 can drive much more motors than the DM432C. What’s more, owing to its higher performance DSP, driven motors can achieve much higher speed (above 3000RPM) than that of the DM432C, offering servo-like performances. It can be regarded as an improved model origin from DM556, while supports broader input voltage range.
Pb-Free or CE/UL approved versions optional. Contact Leadshine or see more information in its hardware manual please.
Application:
Suitable for a wide range of stepping motors, from NEMA size 17 to 34. It can be used in various kinds of machines, such as laser cutters, laser markers, high precision X-Y tables, labeling machines, and so on. Its unique features make the DM856 an ideal solution for applications that require both low-speed smoothness and high speed performances.
