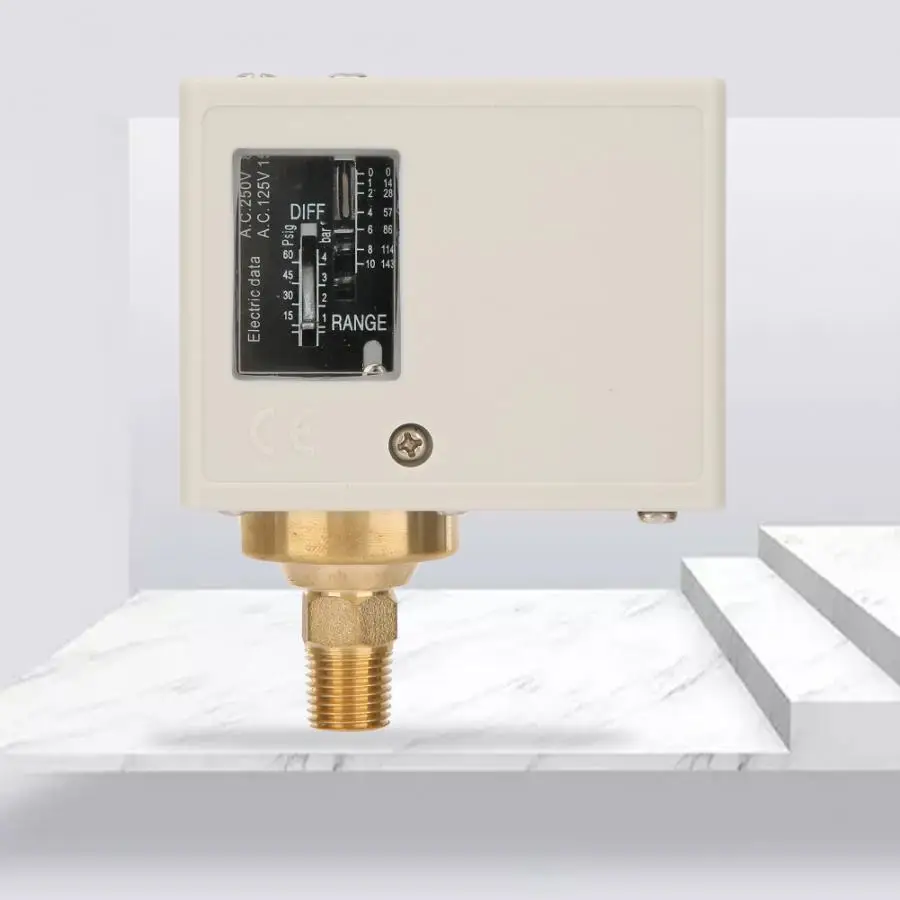

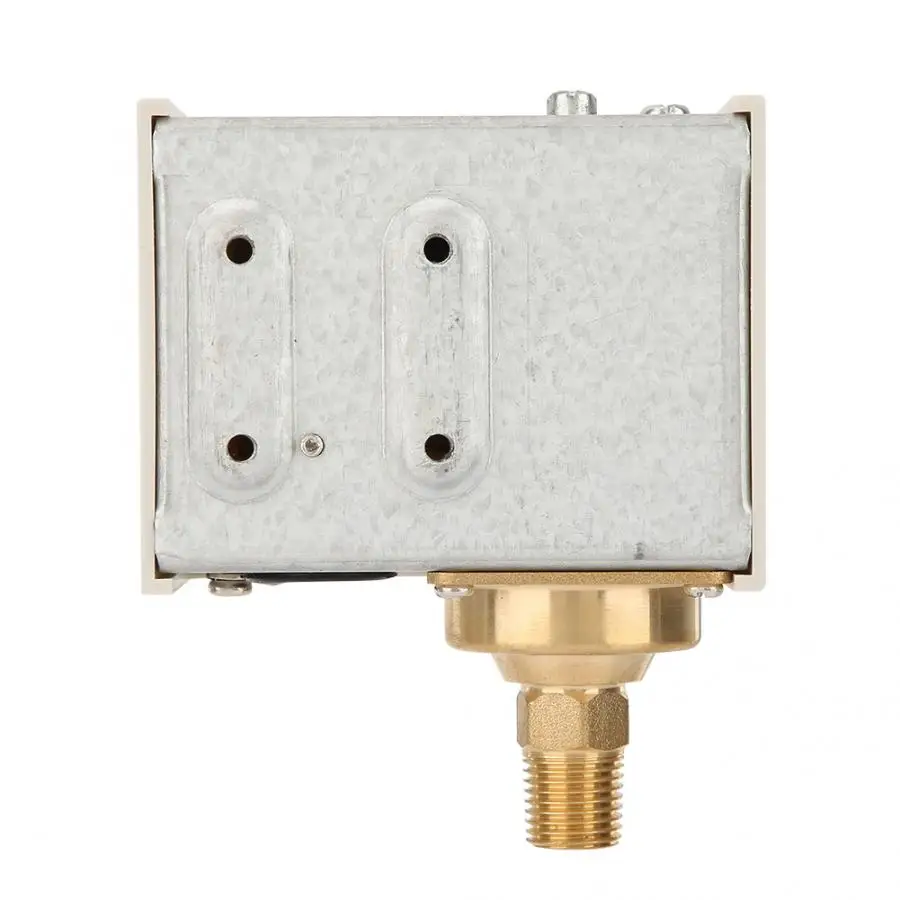

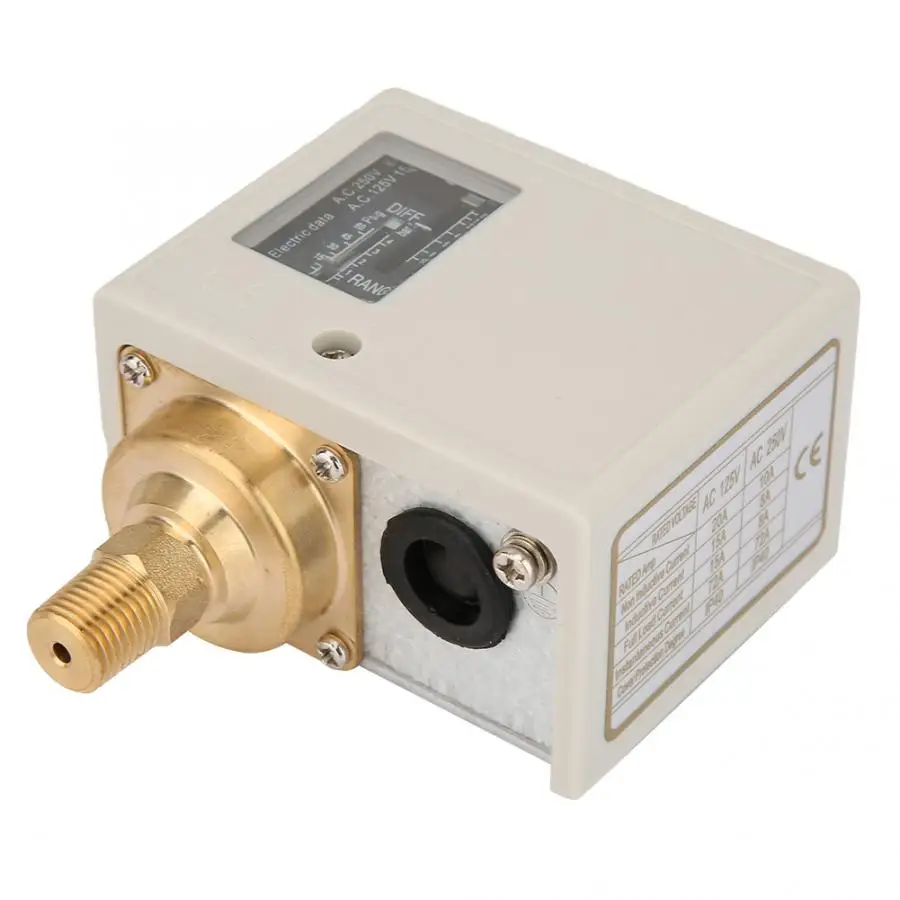

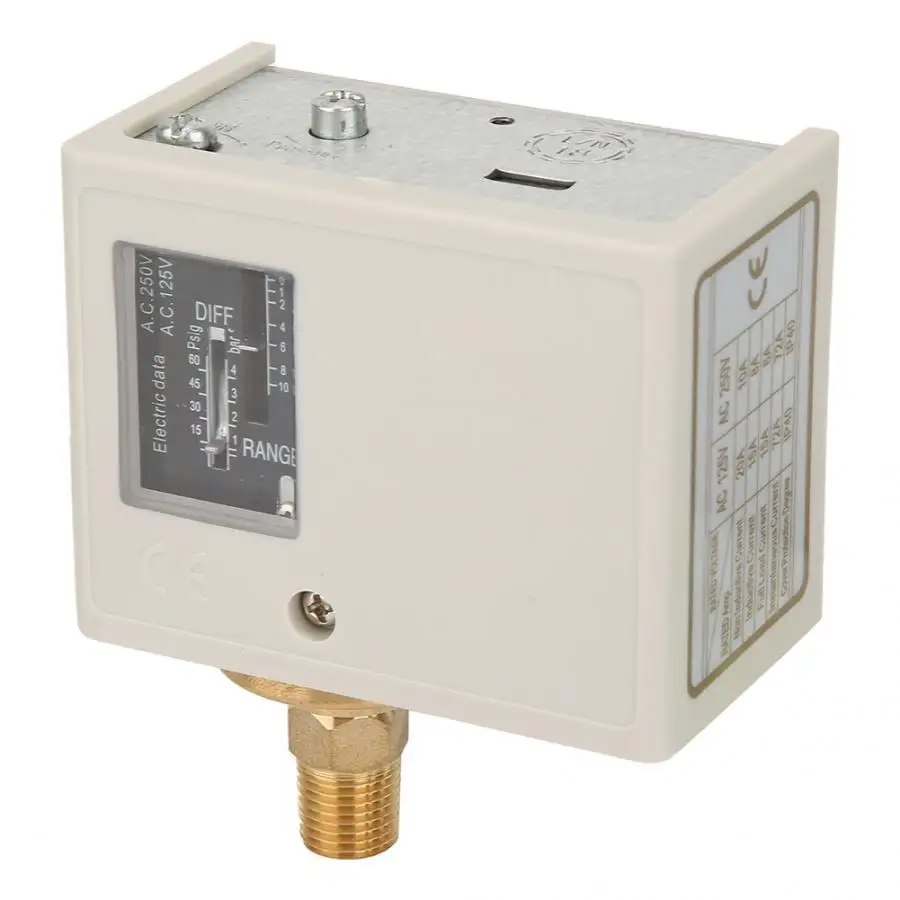

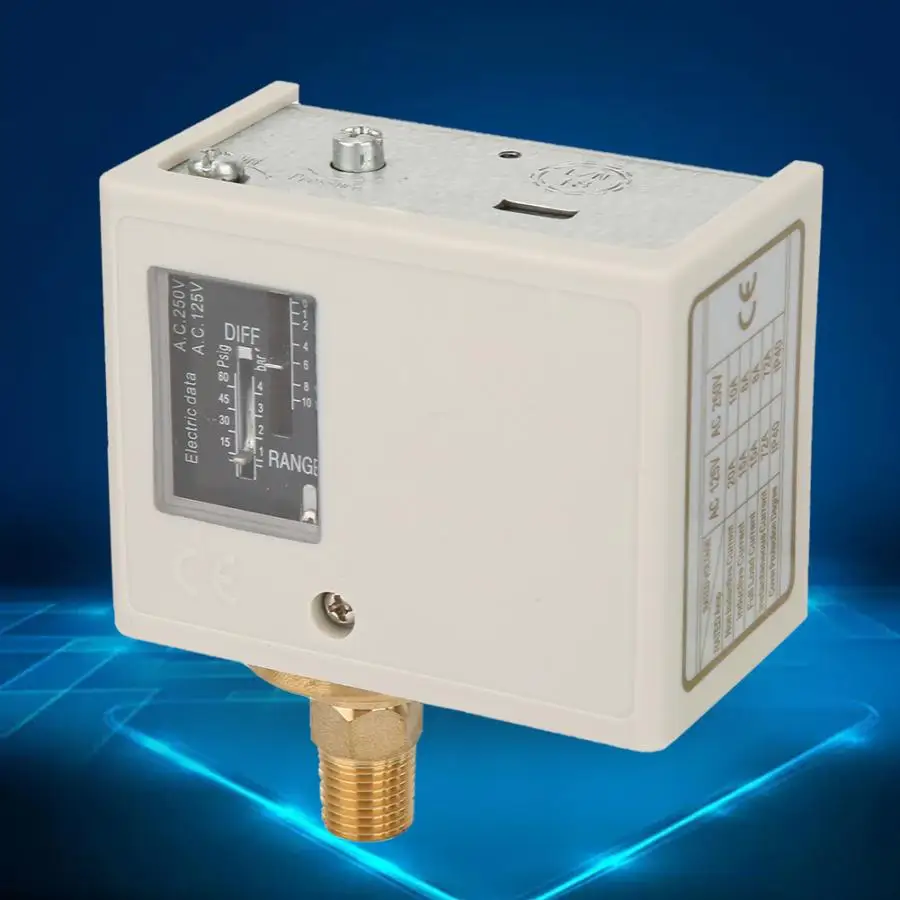

PT1/4" (for Russia) Eletronic 24V~380V Pressure Control Switch for Air Water Pump Compressor
Features:
- Made of high quality material, anti-corrosion, durable in use.

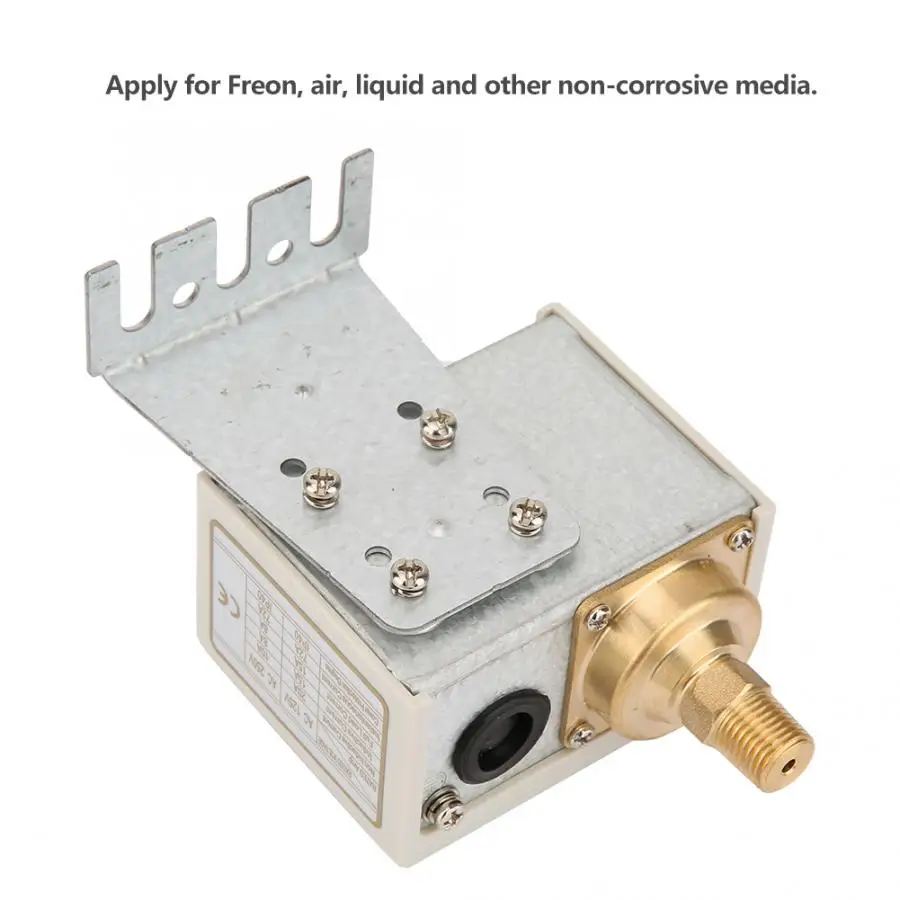

- Apply for Freon, air, liquid and other non-corrosive media.
- Equipped with mounting bracket and screws, easy to install.
- The SPDT switch ensures reliable contact switching.
- Mainly used for high and low voltage limit control of refrigeration equipment or automatic system air conditioning equipment.
Specification:
Model: SPC-110
Weight: Approx.403g/ 14.2oz
Pressure regulating range (bar): 1 (Min) ~10 (Maximum)
Differential pressure adjustment range (bar): 1 (Min) ~3 (Maximum)
Factory setting (bar): 5 (OFF/ON) ~ 6 (ON/OFF)
Maximum air tightness test (bar): 16.5
Power supply voltage: 24V~380V
Micro switch life: 100,000 times

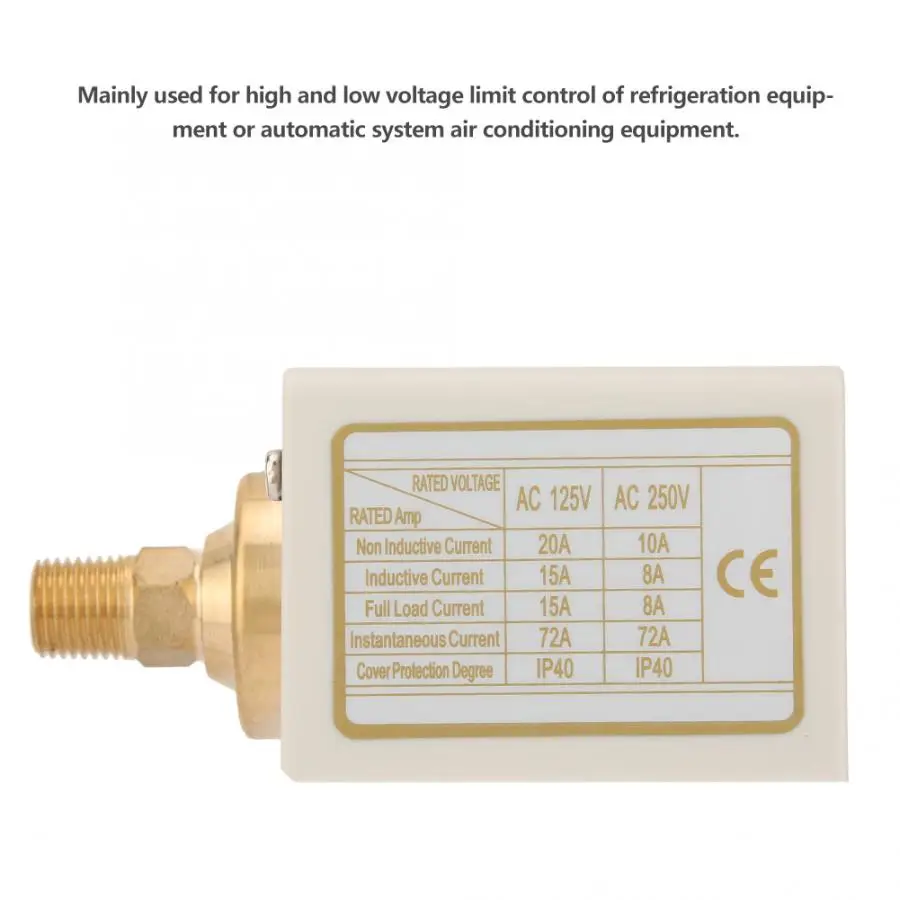

Electrical parameters:
When the rated voltage is 125VAC, the non-inductive current is 20A, the full load current is 15A, and the instantaneous current is 72A.
When the rated voltage is 250VAC, the non-inductive current is 10A, the full load current is 8A, and the instantaneous current is 72A.

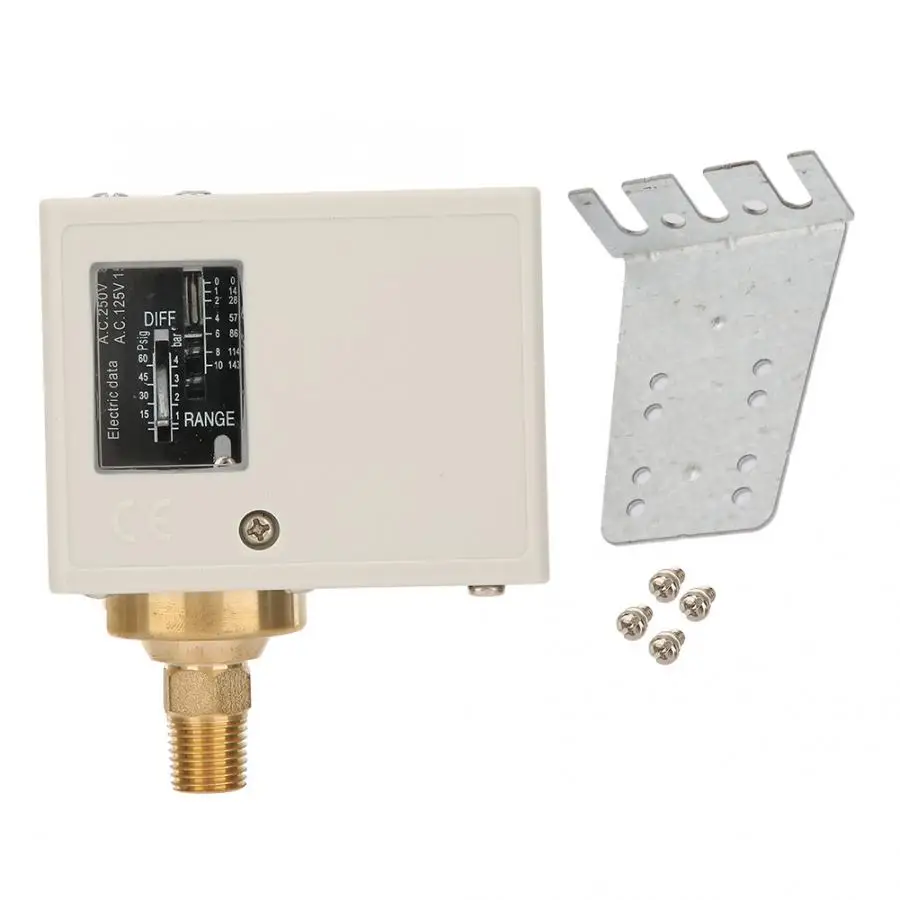

Package List:
1 * Pressure Control Switch
1 * Mounting Bracket
4 * Screw
1 * Manual
