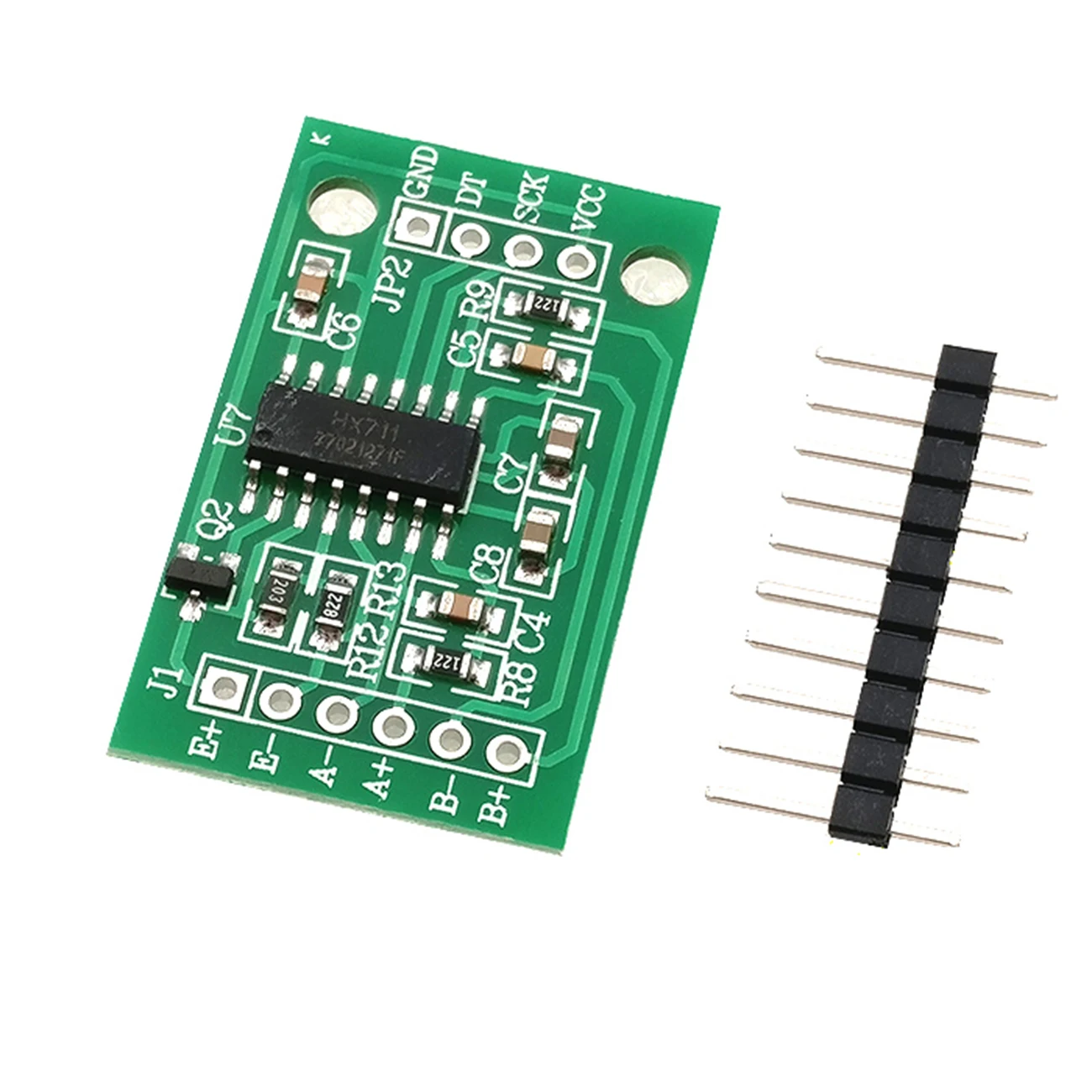

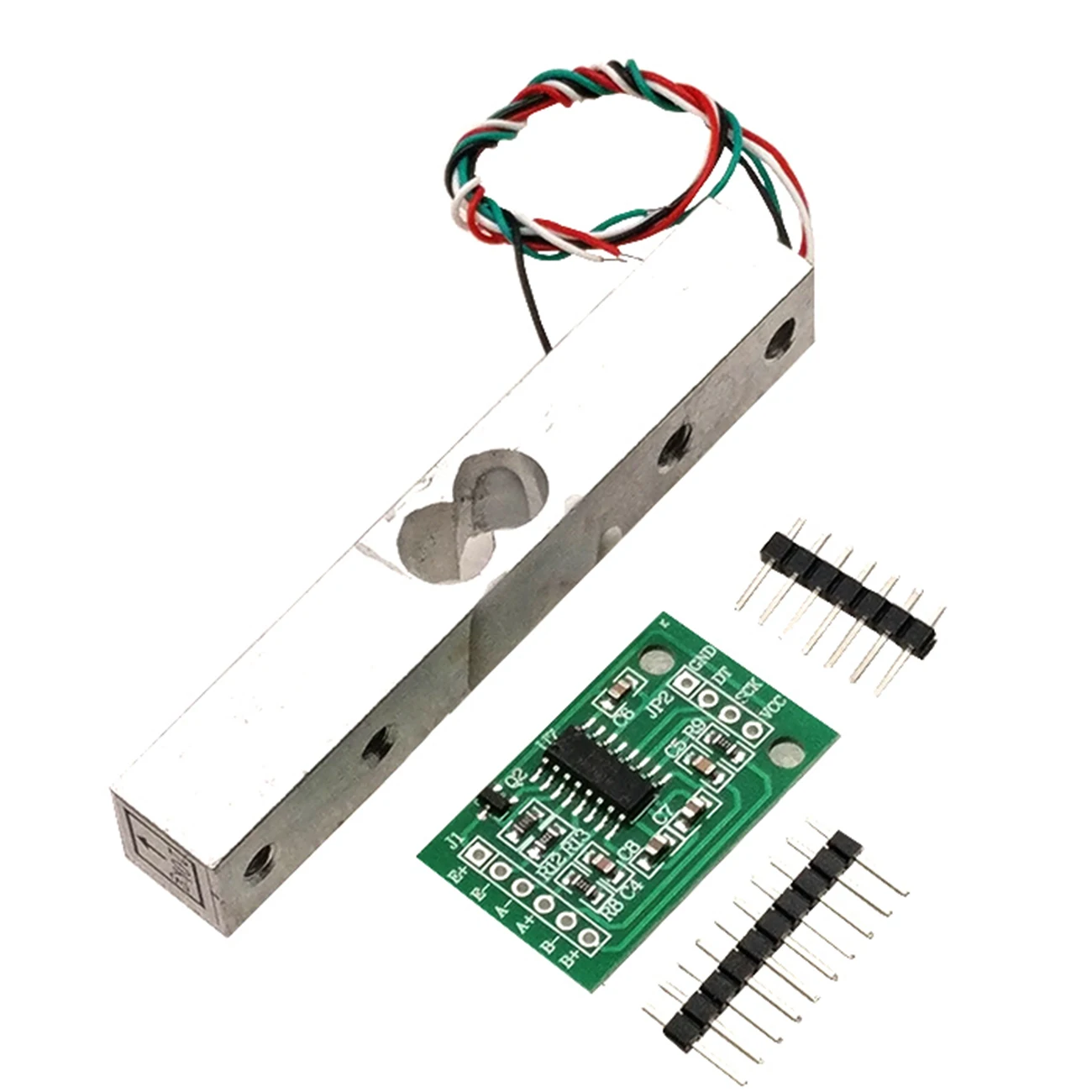

Ultimate Sale HX711 Electronic scale sensor 1KG 5KG 10KG 20KG HX711AD weighing strain gauge pressure sensor 24-bit precision AD module

Color

OutputAnalog Sensor

TypeBiosensor

MaterialMixture

Model NumberHX711AD

UsagePressure Sensor

TheoryResistance Sensor

is_customizedYes

Brand NameCFsunbird

Unit Typepiece

Package Weight0.1kg (0.22lb.)

Package Size10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)

Description:
Note: The color of the item may vary slightly due to the photo and your own computer

Feature:

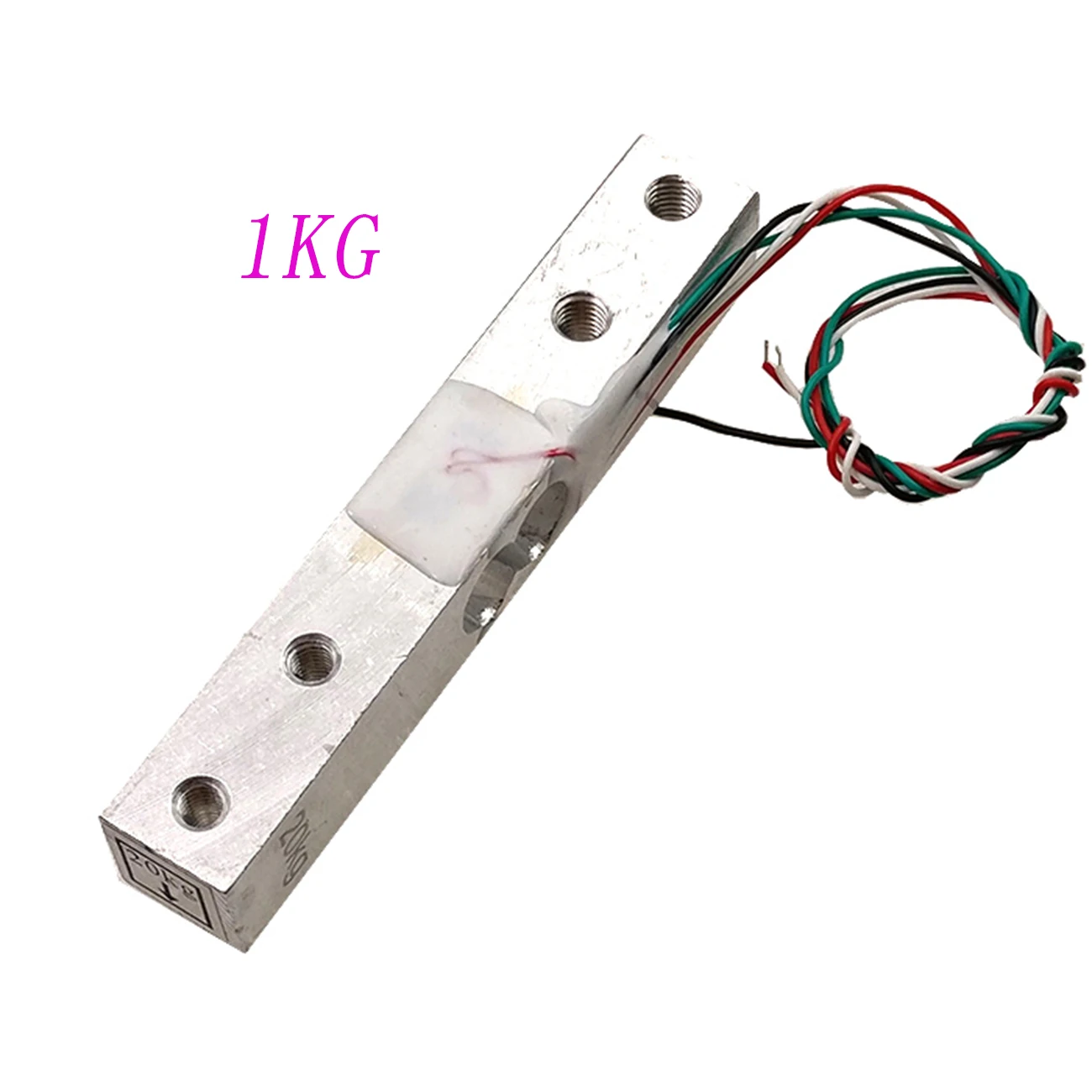

Four lead wires, easy to use, in addition to driving 5-10 V voltage, force changes in the output voltage signal directly.
Installation: Sensor end through the fixed screw hole and the other end left floating state, according to the label indicates the direction of the gravitational force exerted special attention should not directly push into the white plastic cap part of the sensor in order to avoid damage.

Specification:
Model: HX711AD
Dimensions: 60x12x12mm / 2.36x0.51x0.51 "(W x H x H)
Rated load: 2 (kg)
Rated output: 1.0 ± 0.15mV / V
Nonlinear: 0.03% F.S
Hysteresis: 0.03% F.S
Repeatability: 0.03% F.S
Creep (5 minutes): 0.05% F.S
Effect of temperature on output: 0.003% F.S / ° C
Effect of temperature on Zero: 0.02% F.S / ° C
Zero Balance: ± 0.1000 mV / V
Input impedance: 1066 ± 20% Ω
Output Impedance: 1000 ± 10% Ω
Insulation resistance: 2000 MOHMS
Operating temperature range: -20 ~ 65 ° C
Recommended Operating Voltage: 5 VDC
Maximum operating voltage: 10 VDC
Material: Aluminum
Protection: IP65
Cable: & phi; 0.8 × 135 cm
Size of the table: 160 × 160mm
Weight: 23g



'
