Welcome to SZLightall Electronic store!
1. We are professional product and sale LED display
2. We are provide low piece and high quality on Aliexpress
3. Welcome to our factory for inspection in China
Packing list

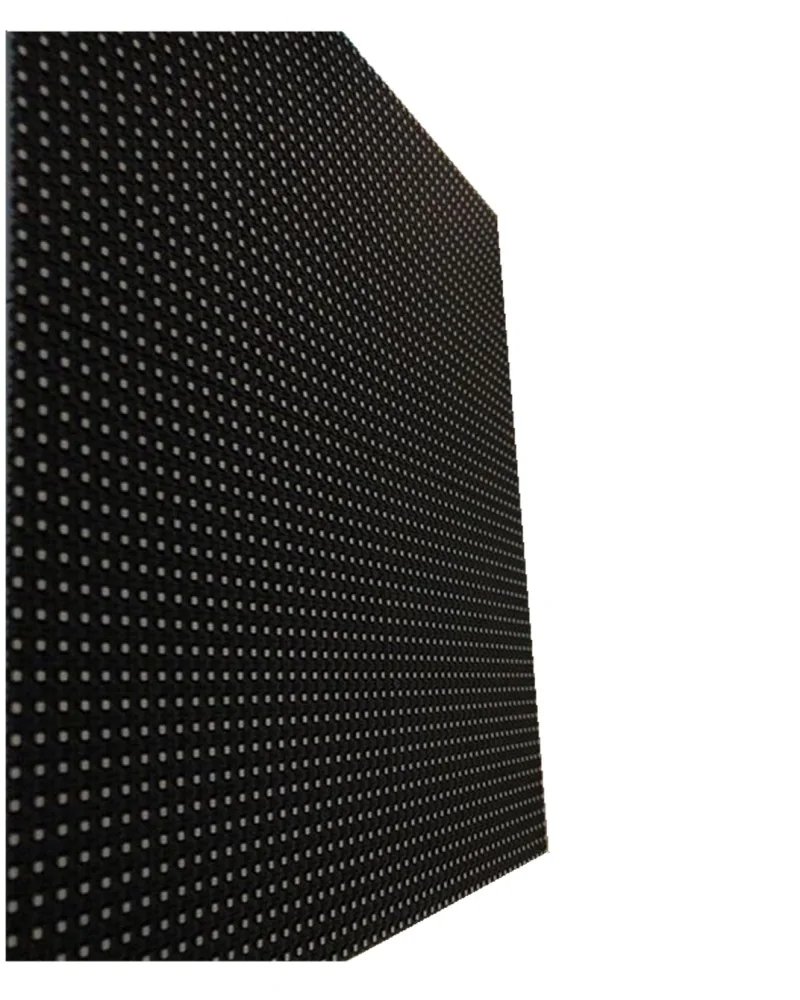

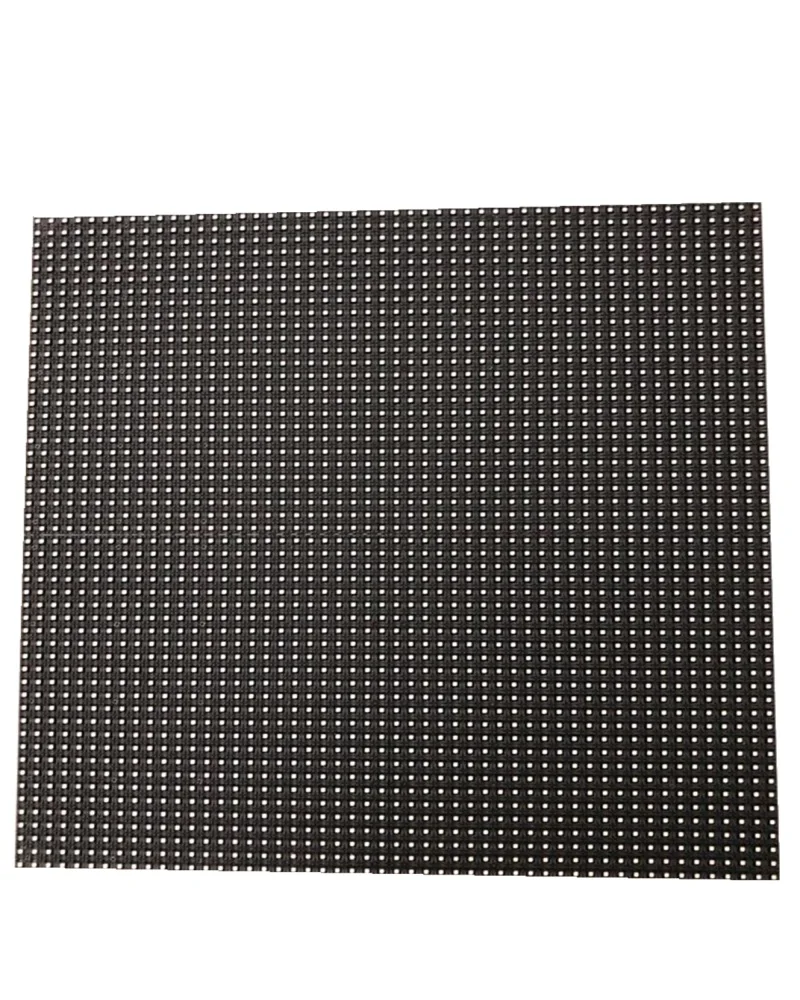

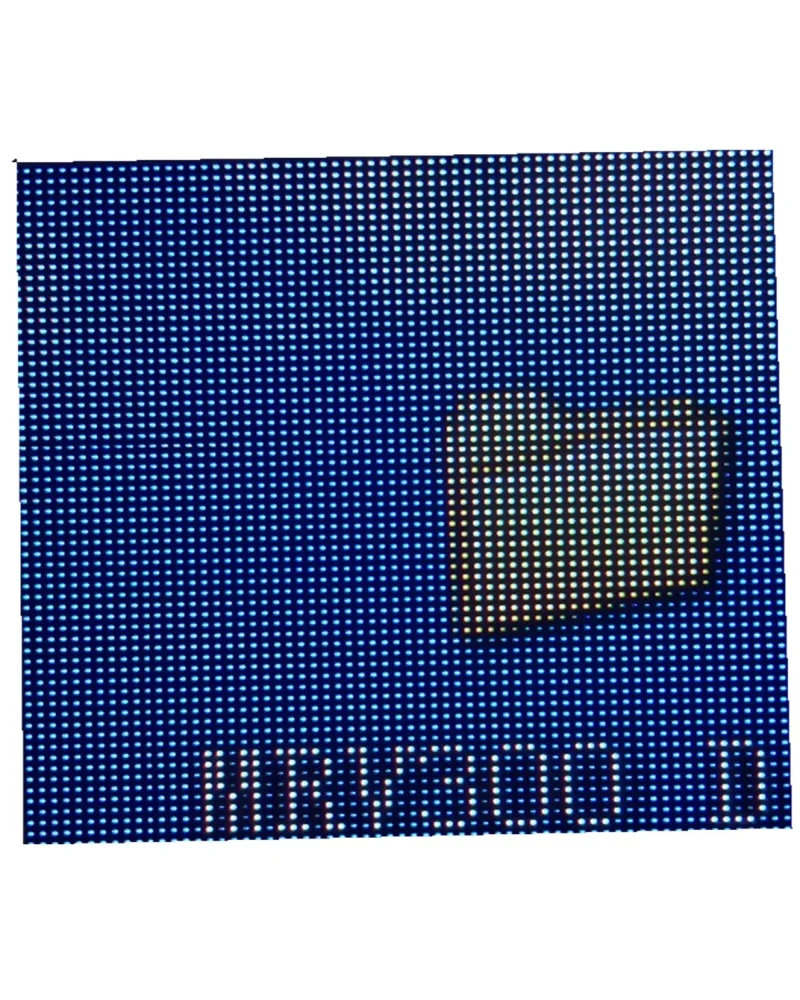

1pcs p4.81 outdoor 250*250mm full color module
1pcs falt ribbon data cable
1pcs power cable
1pcs rubber beading
Notice:if you buy N pcs,we will supply N/2 pcs power cable,because 1pcs power cable can support 2 modules
Magnetic screw are not include,if you need them instead of rubber beading,pls contact us before placing order or leave us the message for your order
Model available:indoor p2.5,p3,p3.91,p4,p4.81,p5,p6,p7.62,p10;outdoor p3.91,p4.81,P5,P6,P7,P8,P10,P12,P12.5,P16,P20
Outdoor LED Display Modle Specifications:
P4.81 SMD2121 250x250mm 1/13S
| Item | P4.81 |
| Chip | Epstar |
| Chip size | Red 9 mil, Green 12. Blue 12mil |
| Light type | SMD |
| Pixel Pitch | 4.81mm |
| Module Size | 250mmX250mm |
| Module Resolution | 52X52 (dots) |
| Density of pixel | 43222 dots/m2 |
| Pixel configuration | 1R1G1B |
| Red wavelength | 625±2nm |
| Green wavelength | 525±2nm |
| Blue wavelength | 470±2nm |
| Colors | 16777216 |
| Best viewing distance | ≥4m |
| viewing angle | 120°/90° |
| Maximum power consumption | 20W |
| Brightness | 6500cd/m2 |
| Gray scale | 14bits per color |
| Color temperature | 6500k |
| Control method | Synchronization or Asynchronization |
| Driving method | 1/13 scanning |
| Frame frequency | 60Hz |
| Refresh frequency | ≥600Hz |
| Working Voltage | DC5V |
| IP grade | IP54 |
| MTBF | More than 8000hours |
| Life Span | 80,000hours |

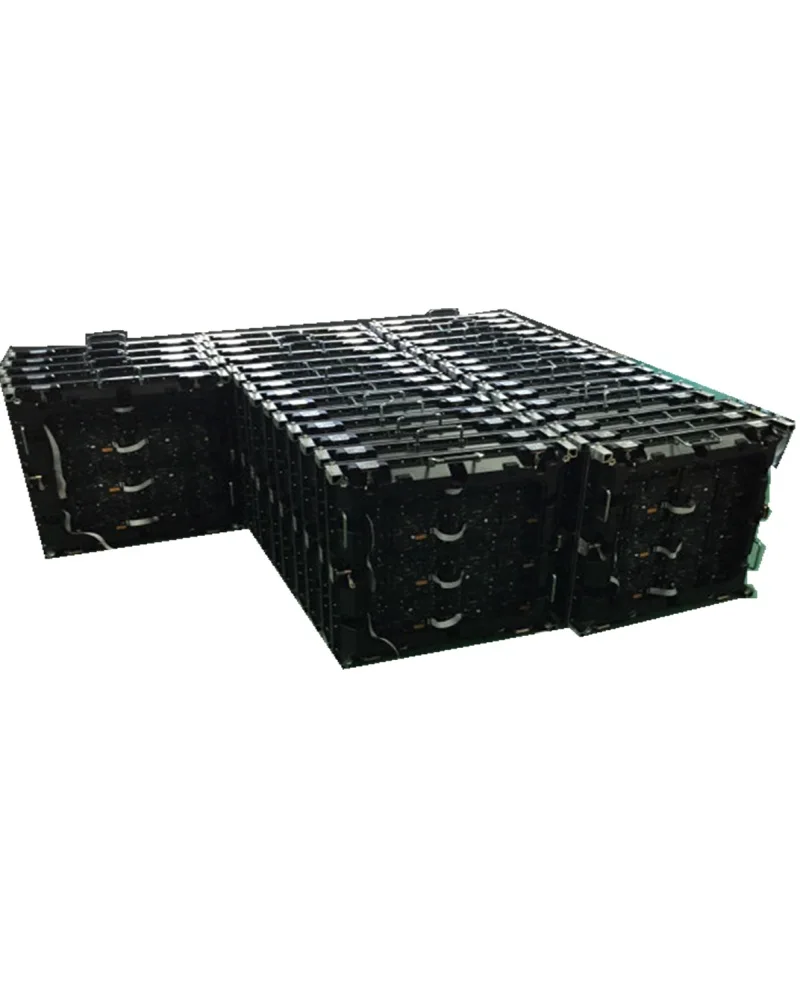

Cabinet structure :
Display operation diagram:

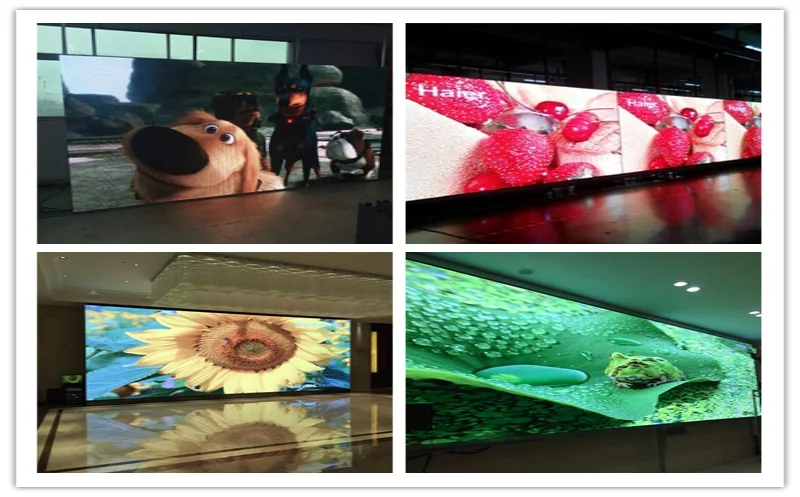

Project cases:
advertising led displays
stage&rental led display
stadium &perimeterled display
other type led display(turck,taxi,led player,front open,double side,mesh)
Factory Visit:
Company Profile
1. With professional technical and development team, we are a direct Factory specialized in led display control card, led display module, power for led display, led display, and other led display accessories etc.
2. With more than 10 years’ experience, modern production and test equipment,perfect enterprise management system,high quality research and management team, high quality led display controller, all above make us become popular supplier.
3. With our high quality and service our products have been exported to various countries and regions in Southeast Asia, Australia, Europe and America etc.
Shipping by Express
1. We Ship to Worldwide.
2. Items are shipped from China via EMS, UPS, FedEx, DHL, TNT and airmail (with tracking number) etc.
3. Delivery time depends on the courier company ,the destinations, the local customs and other factors; We hope it arrive on time, but this international delivery shipping time will be highly depends on the courier company and local customs, hope you can understand if there are any shipping delay caused by above reasons.
Shipping by Sea
If you want to deliver the led display board by sea pls tell us, we will quote you the ocean freight.
ATTENTION!!!
1. Different batch or different company's led module , they can't be used together because the color ,brightness,signal direction of PCB board are different.
(Different batch screw holes position on the housing might be diferent with the picture, pls confirm with us before order if you are repaird order.)
2.As thest products easy to broke, so we suggest you choose express(DHL,Fedex, UPS, TNT) shipping ensure folwless and prefect.
3. All the series modules are 5V power ,220V voltage,make sure your switch power supply suitalbe.
